Cash Drawer SN 35×40 D3®

120,00

50 in stock

SKU: SN-35x40-D3 Categories: ,

Description

With our oldest devision we produce high quality cash drawers. A variety of models with a wide range of dimension, design, colors and cable interface options are available to meet your specific requirements.

SN PRO Series.
The experience and professionalism gained through years of production makes us a reliable partner offering us the market with high quality products and keeping up with the requests. Our cash drawers can be used for all kind of POS and ECR use cases.

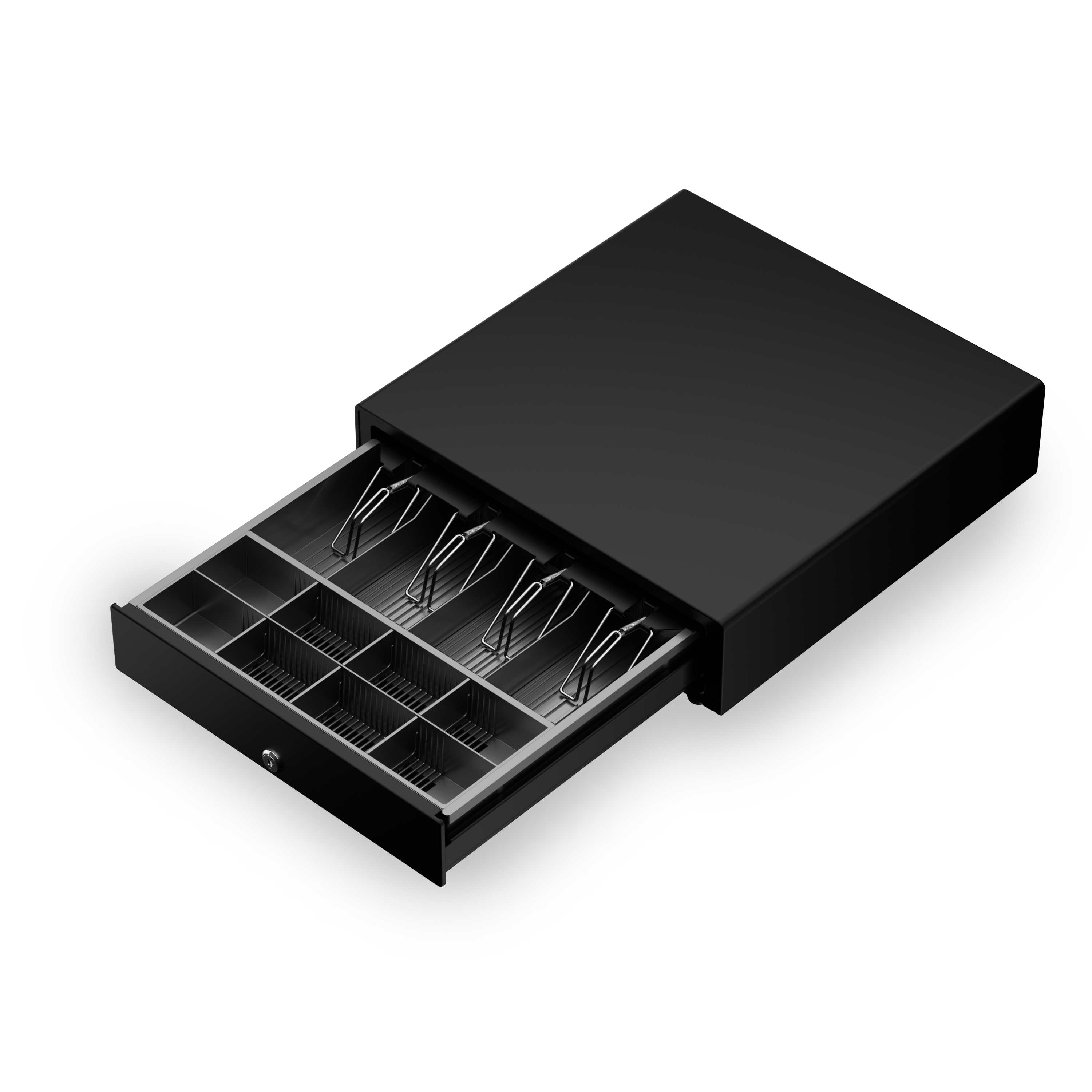

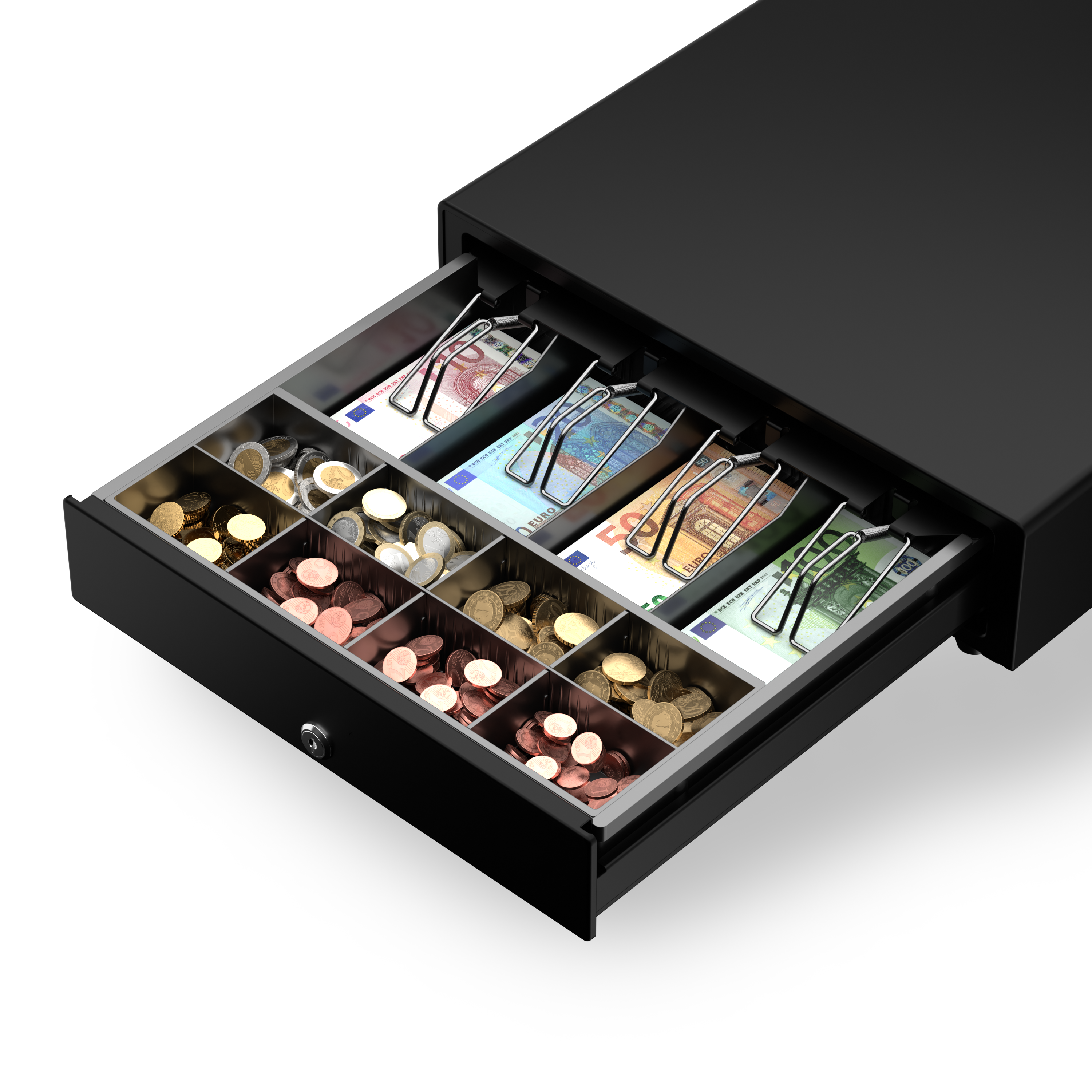

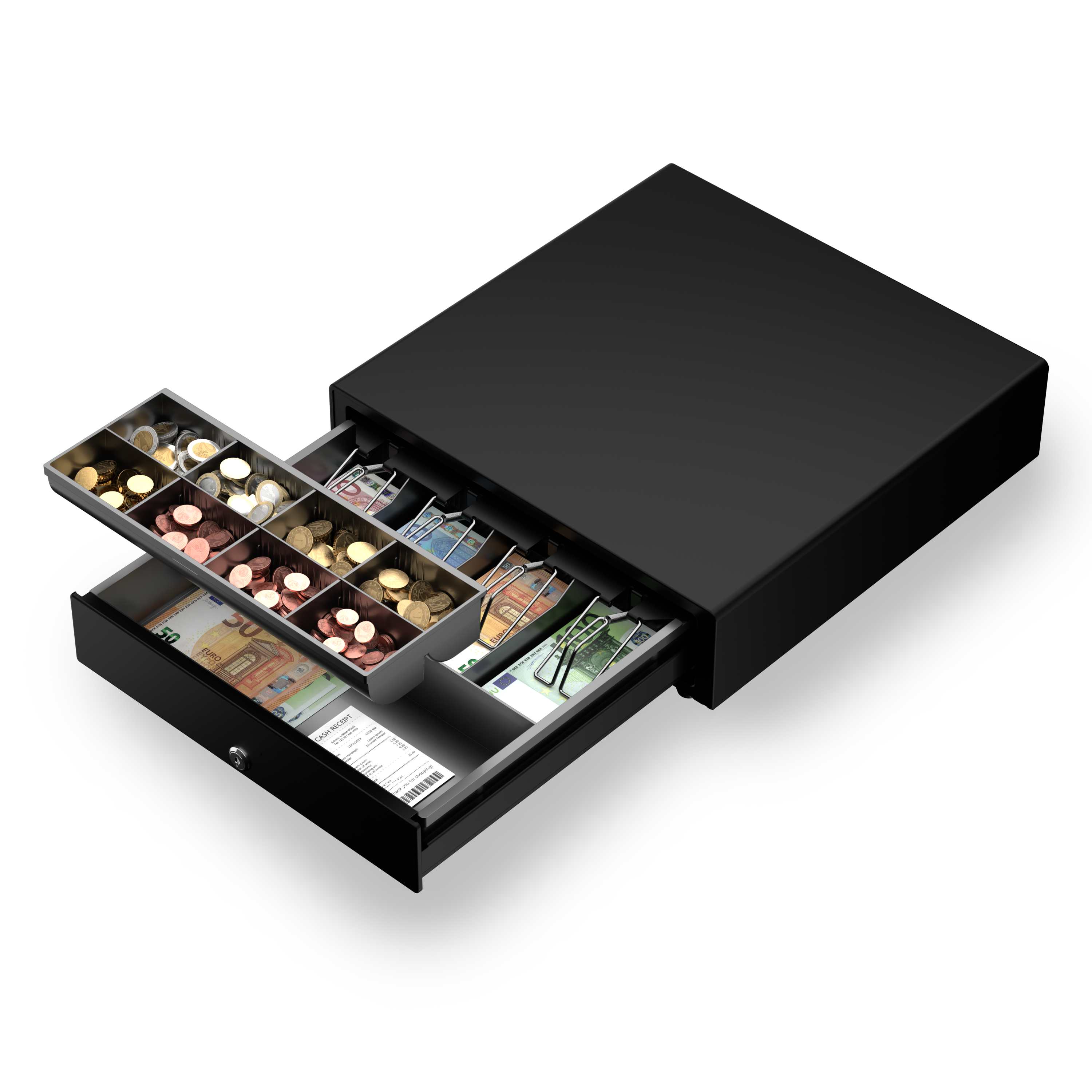

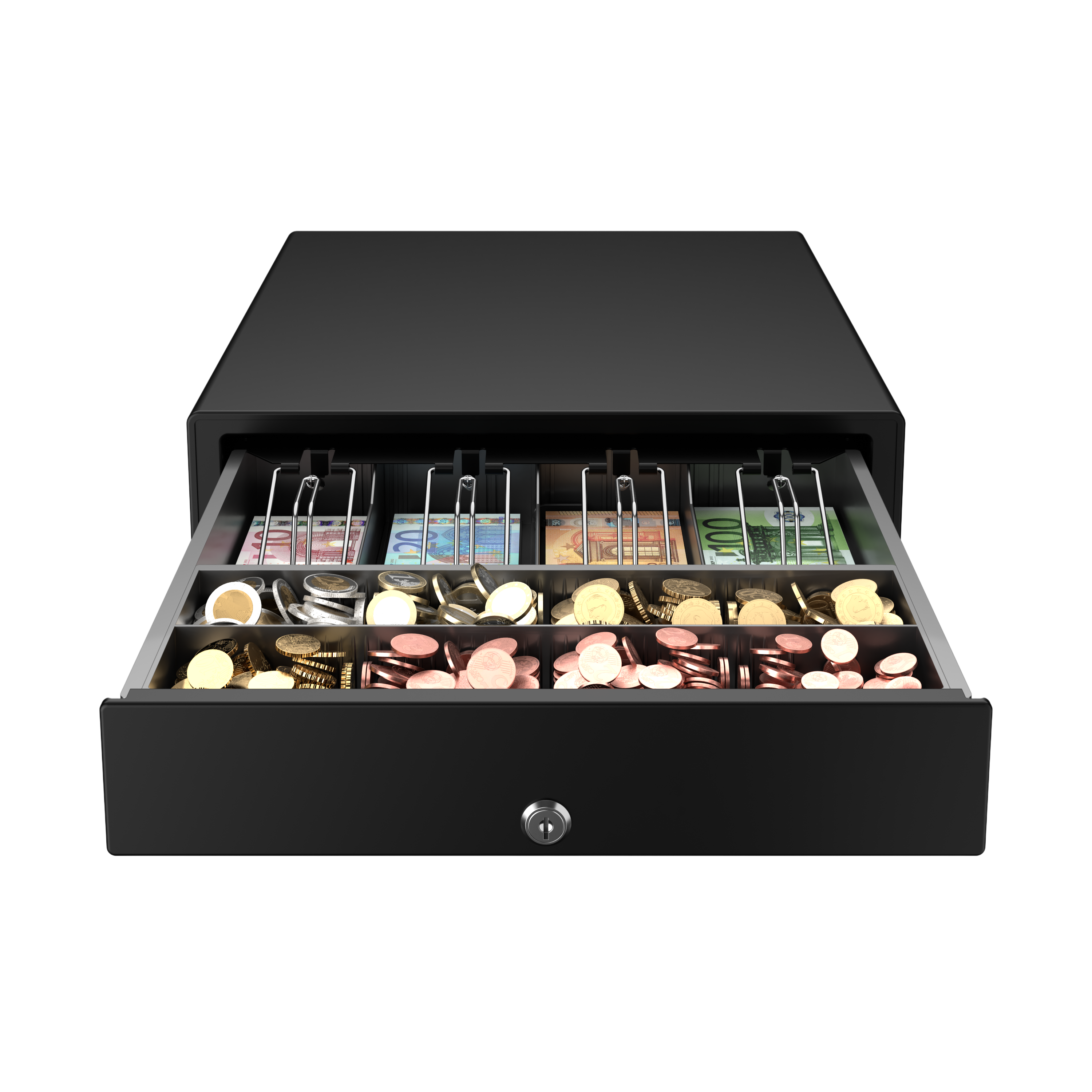

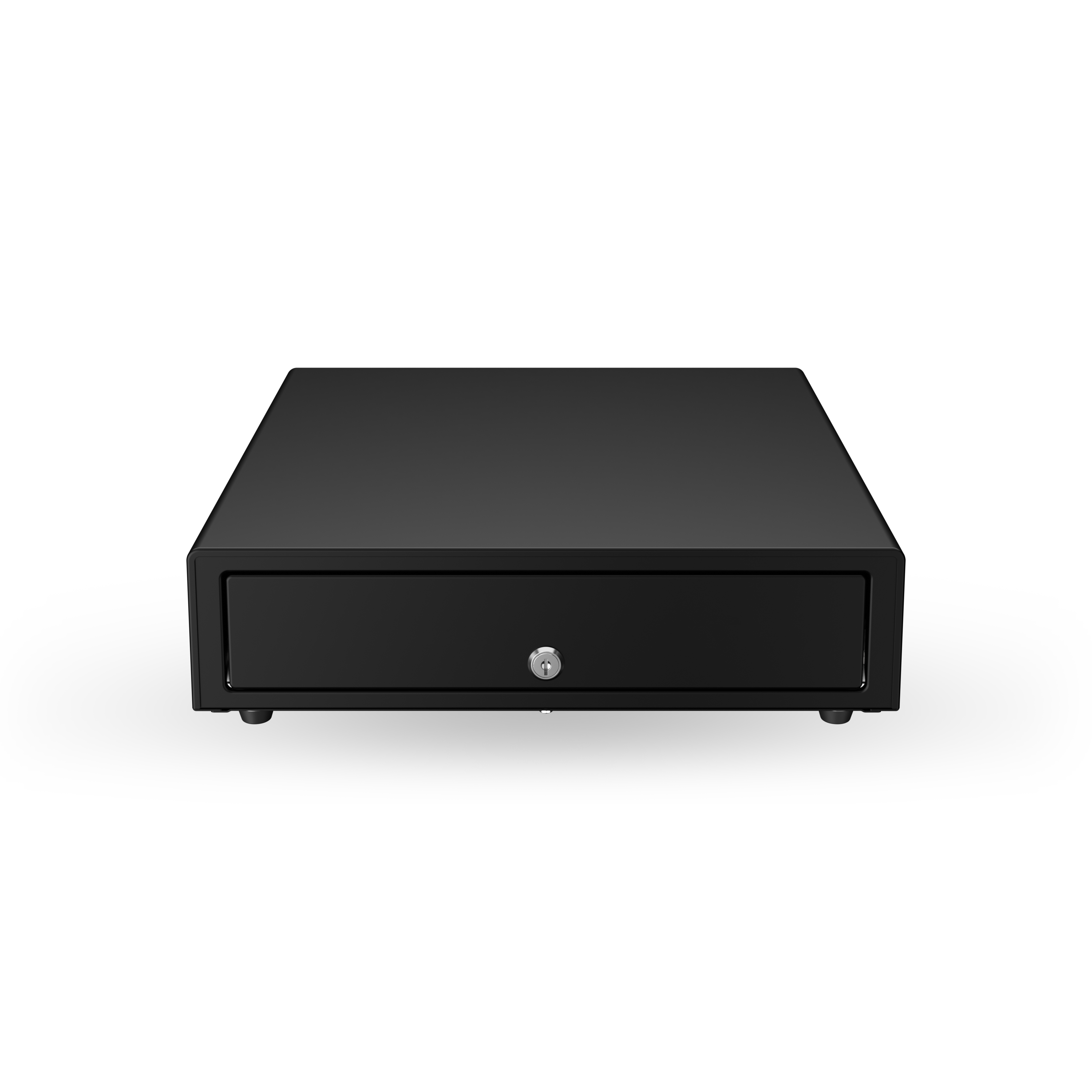

CASH DRAWER SN 35×40 D3®

download datasheet
  • Dimension 350W x 400D x 100H (MM)

  • Metal structure and metal tray sliding (from 0.8mm to 2.00mm)
  • Reinforced metal beam welded on top (Options)
  • Color: Black / White / Grey / RAL#

  • Front panel in stainless steel (options)

  • ABS Insert:

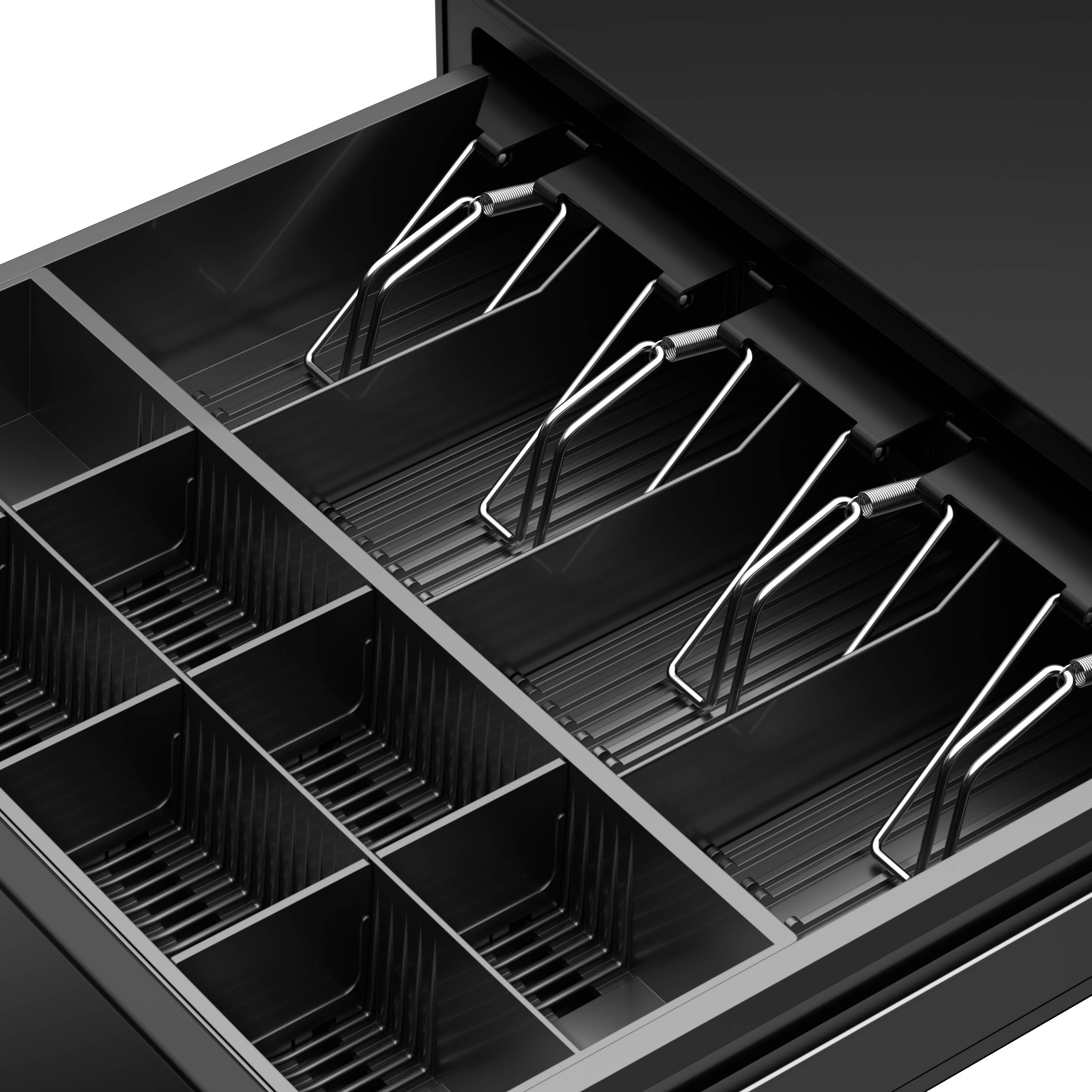

    • 4 Banknotes (steel metal clip) / 8 Coins, Removable Till & Coin Case (Under coin storage for large banknotes and receipts)

    • 4 Banknotes (steel metal clip) / 5 Coins, Removable Till & Coin Case (Under coin storage for large banknotes and receipts)
    • Lockable Lid with Key Lock (options)

  • Front opening sliding with polyurethane heavy duty ball bearing rollers

  • Emergency release lever. Cover hole for emergency release lever (options)
  • Keylock: 3 Position. Single combinations or 25 different keys combinations
  • Solenoid: 6V, 9V, 12V, 24V, 24V + Micro-Switch sensor
  • DC Interface: RJ11/12, RJ12 Female, Jack, Bluetooth, USB
  • PIN scheme: 1# Case Ground, 2# Solenoid, 3# Microswitch, 4# Solenoid, 5# Microswitch, 6# Signal Ground
  • Cable Length: 1.20m (output top case), customizable
  • Manual Opening (Options): Front panel (touch opening); Push button (push button manual release)
  • Weight 6.5 Kg
  • Tested durability through 1.500.000 Cycles
  • Certifications:
    • TÜV Mechanical Safe Test Report,
    • TÜV Drop Test,
    • TÜV Vibration Test,
    • TÜV In accordance with the Restriction of Hazardous Substances (RoHS)
    • Directive 2011/65/EU, CE Certification related to CE Directive(s): 2001/95/EC,
    • CE Certification related to CE Directive(s): 2014/35/EU,
