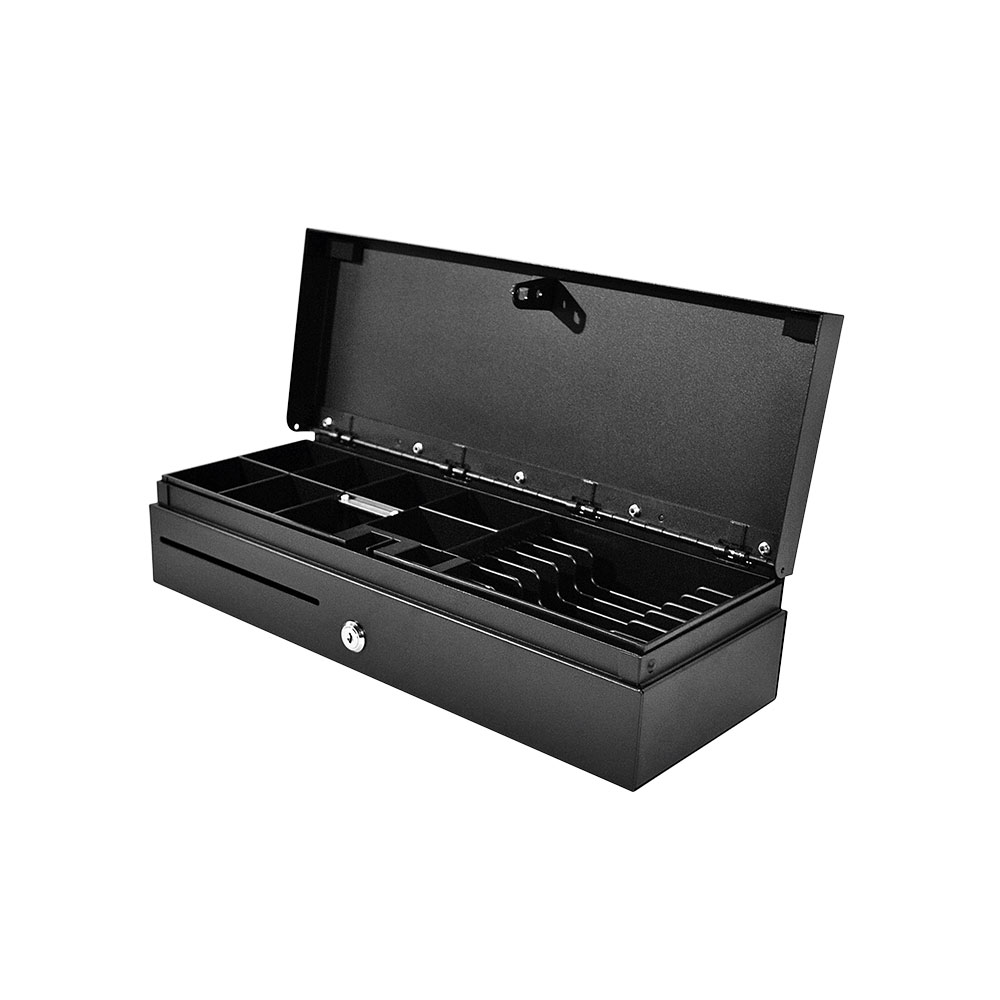

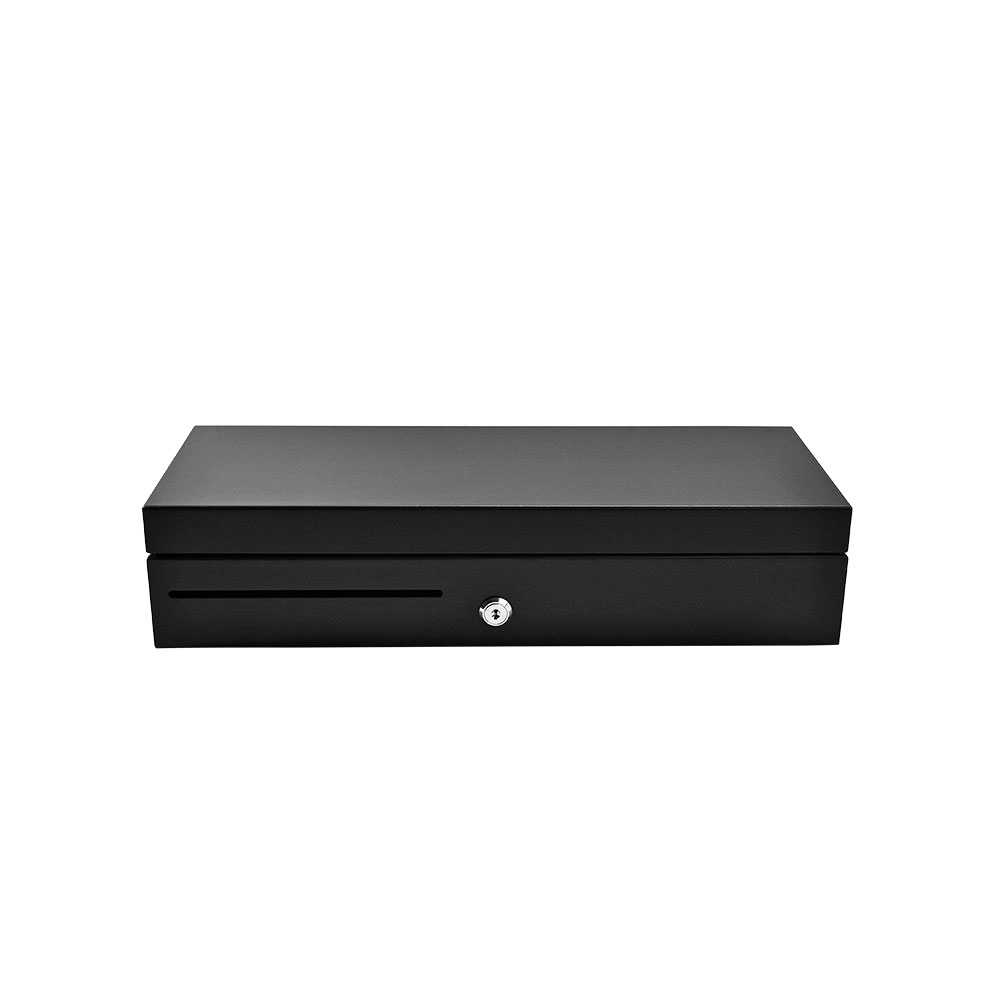

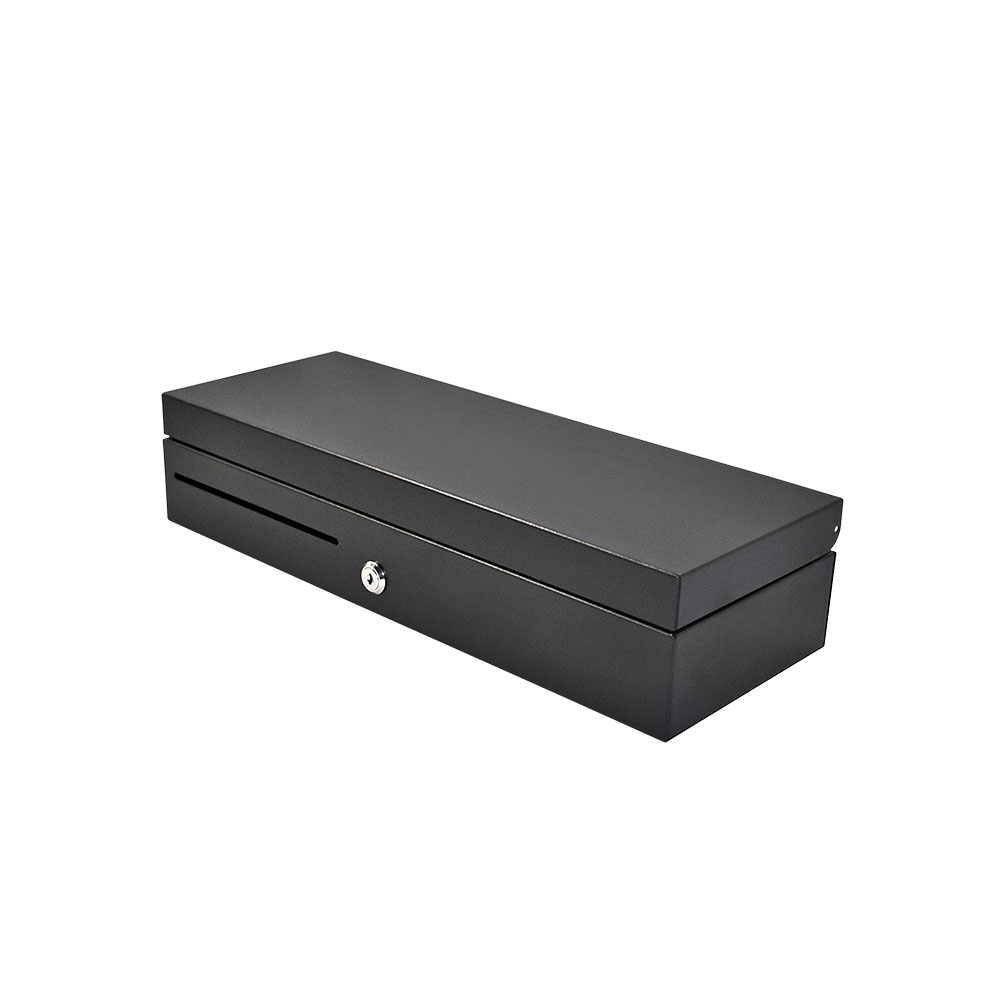

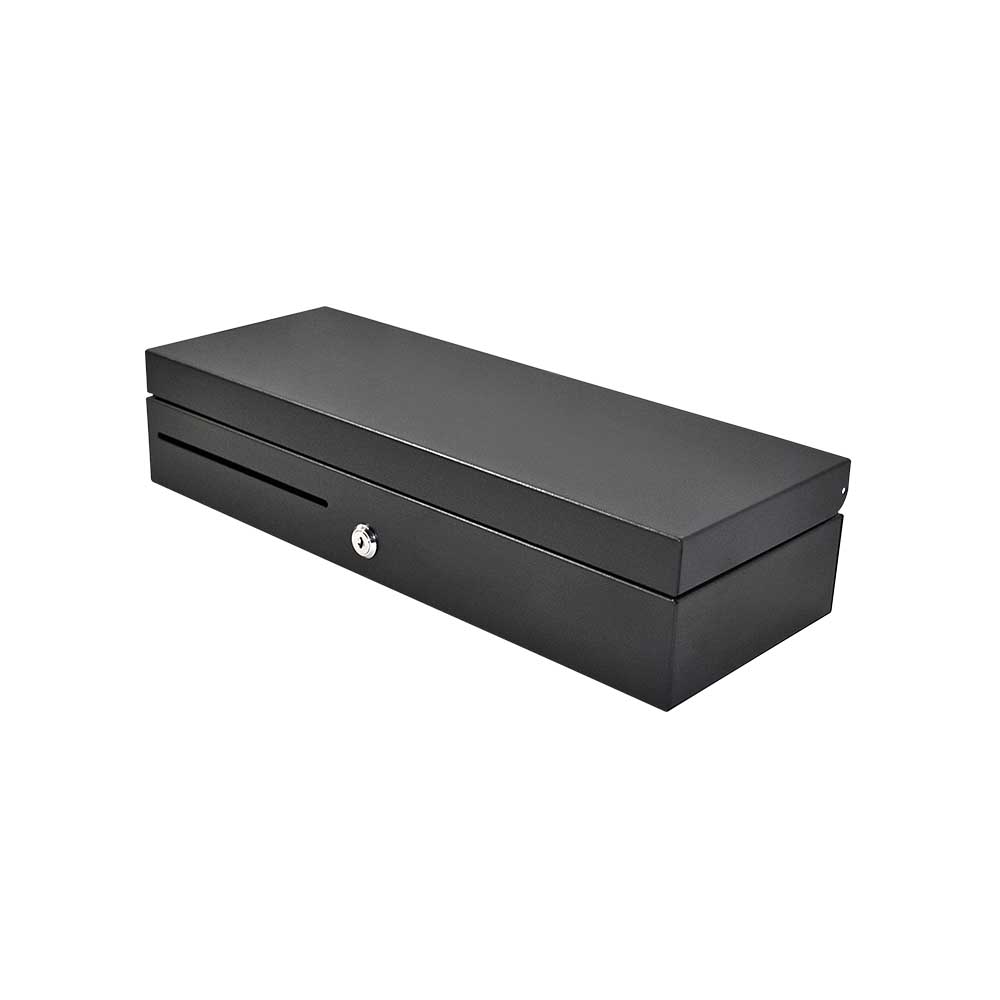

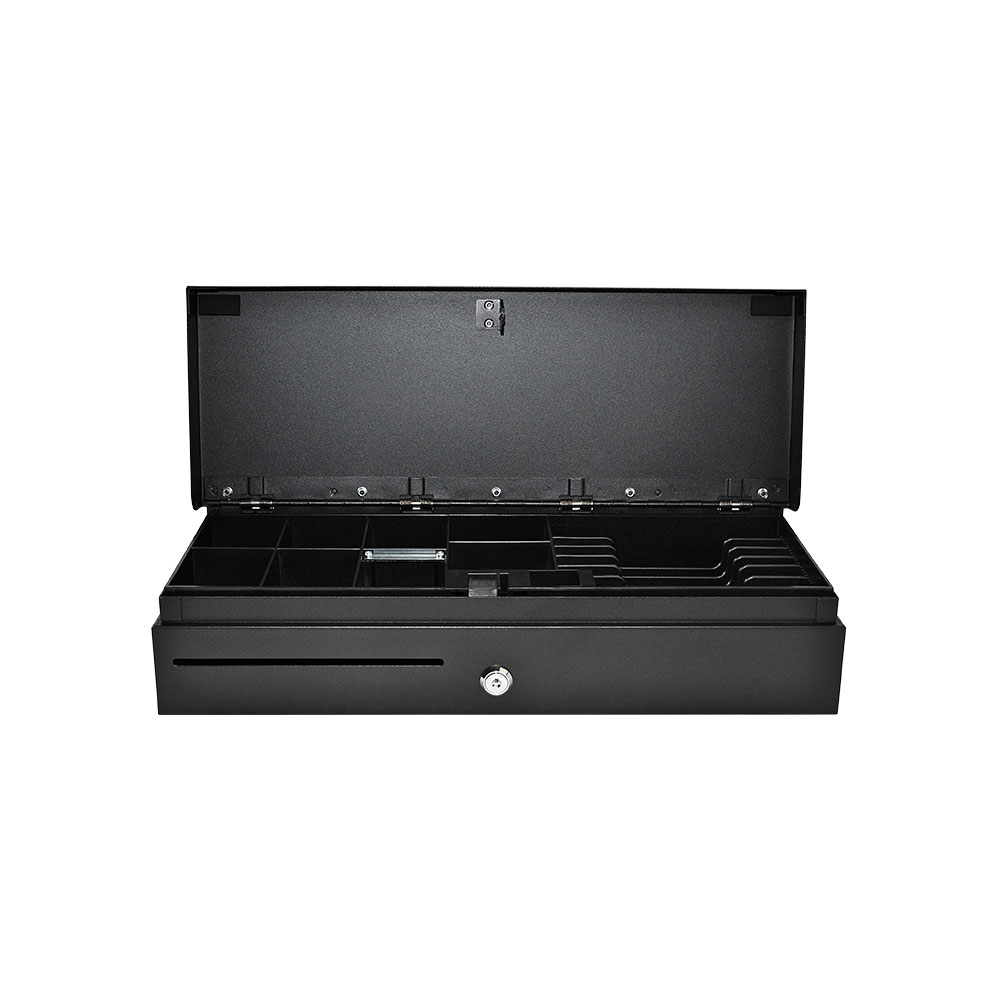

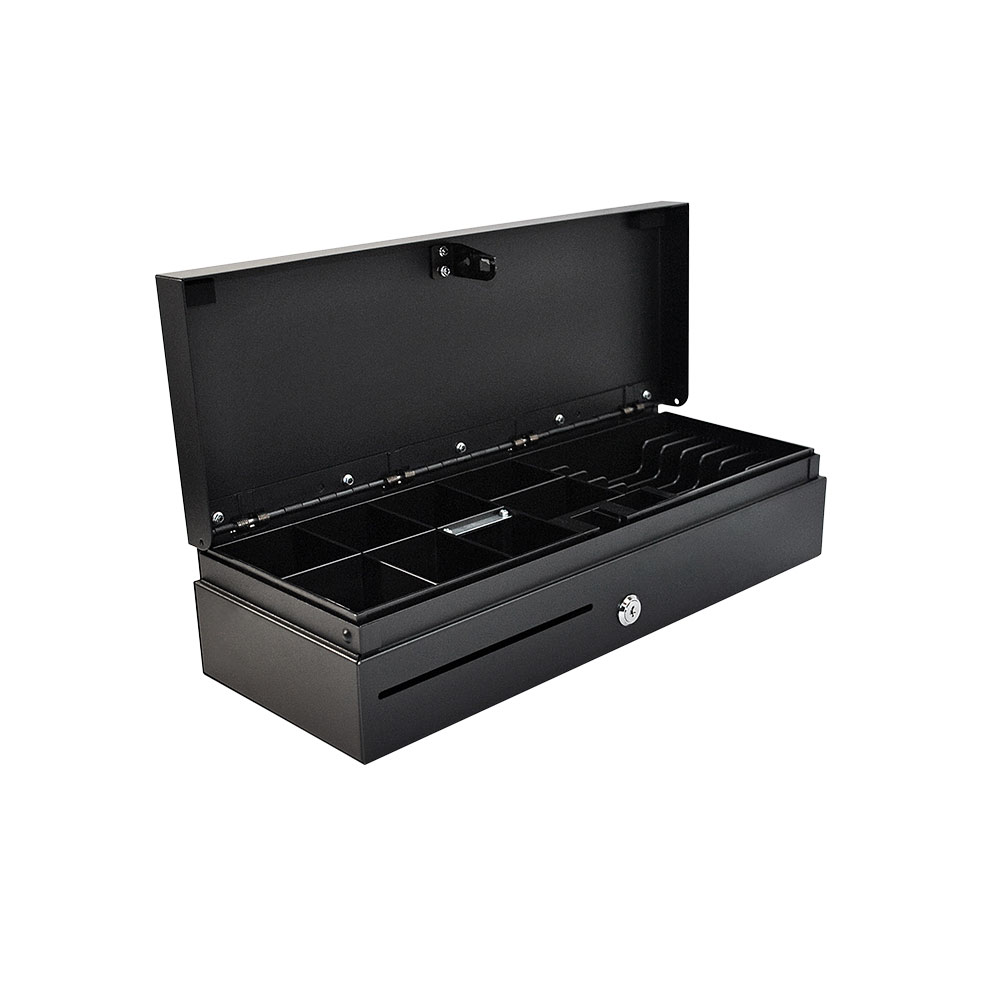

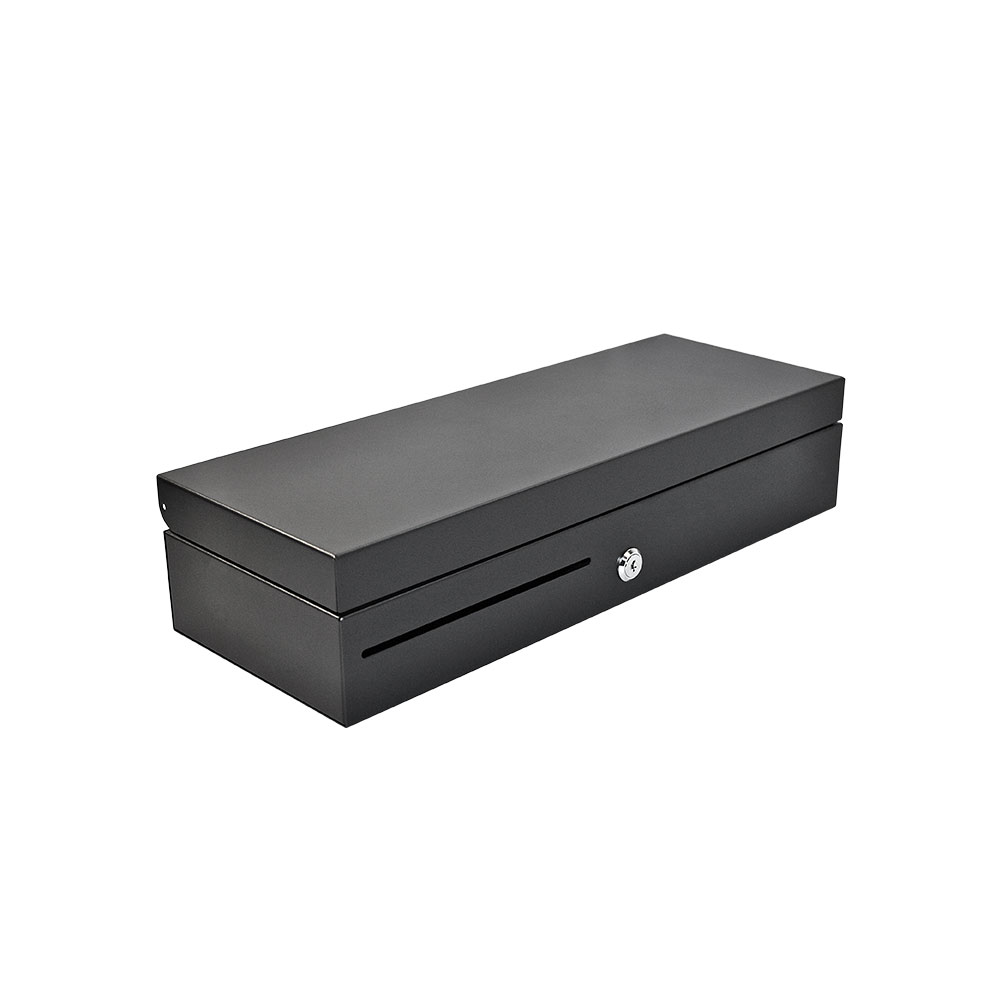

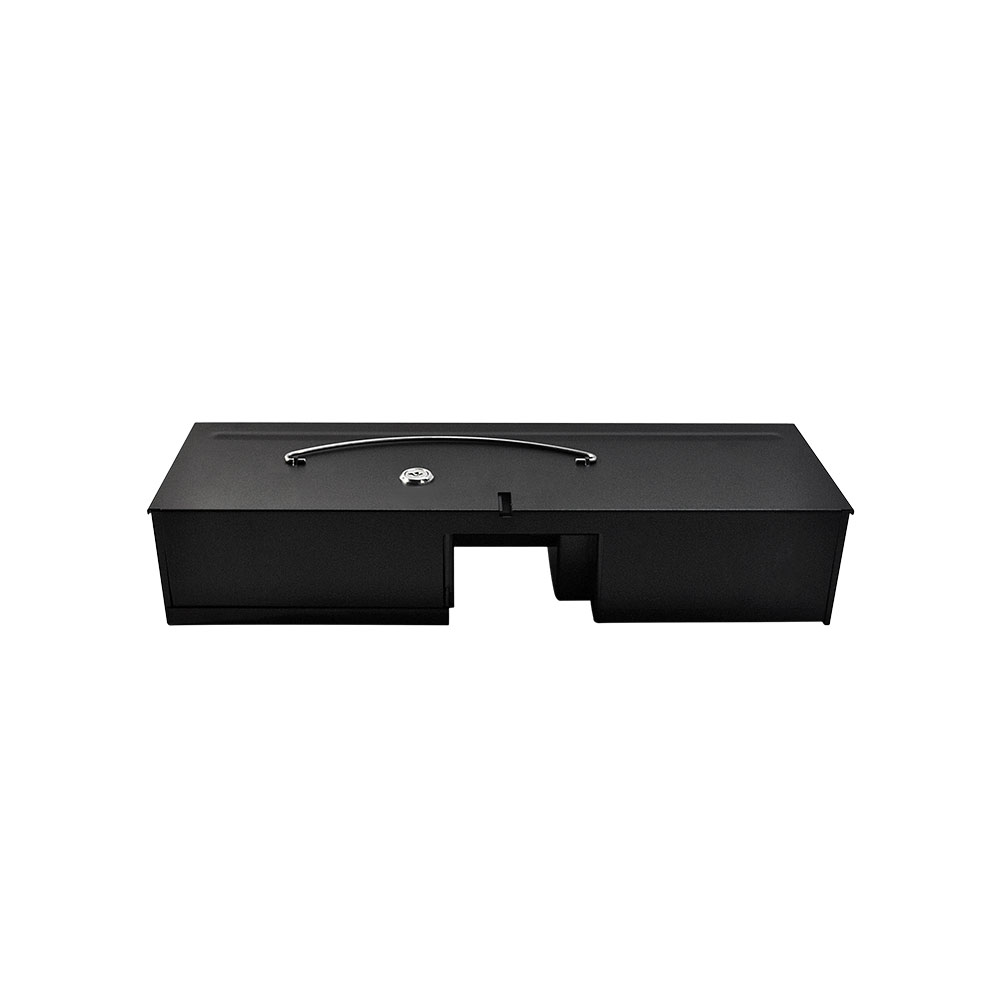

Cash Drawer SN 46x17BB D5®

SKU: sn00250 Categories: ,


Dimension 460W x 170D x 100H (MM)
CASH DRAWER SN FLIPTOPBB D5®. The quality standards of European products is what we believe in. We are using the best possible resources to produce a product that fits to your needs and last even longer. The FLIPTOP series is just build for the highest quality and safety needs. 2 Million opening guarantee. A variety of models with a wide range of dimension, design, colors and cable interface options are available to meet your specific requirements.

The supermarket series is build for heavy usage and therefore has a guaranteed number of minimum openings of 1.5 Million. The experience and professionalism gained through years of production makes us a reliable partner offering us the market with high quality products which are certified by the major shopfitting manufacturer and OEM system integrator. Our cash drawers can be used for all kind of Checkout Supermaket and Retail stores.

• Full metal structure structure (from 0.8mm to 2.00mm)
• Top opening system
• Color: Black, Cover: Black
• One Media Slots

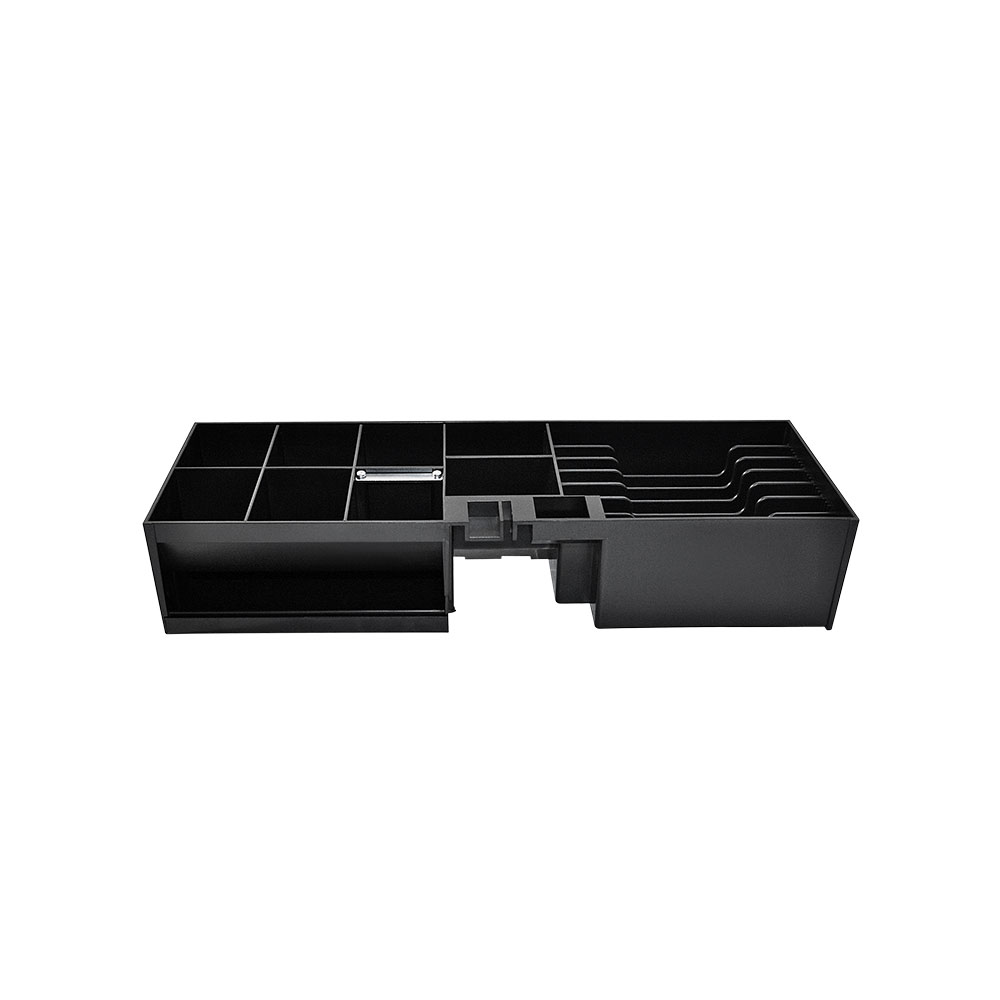

• ABS Insert: 7 Banknotes / 8 Coins, Removable Till & Coin Case (Under coin storage for large banknotes and receipts) – Adjustable Banknotes

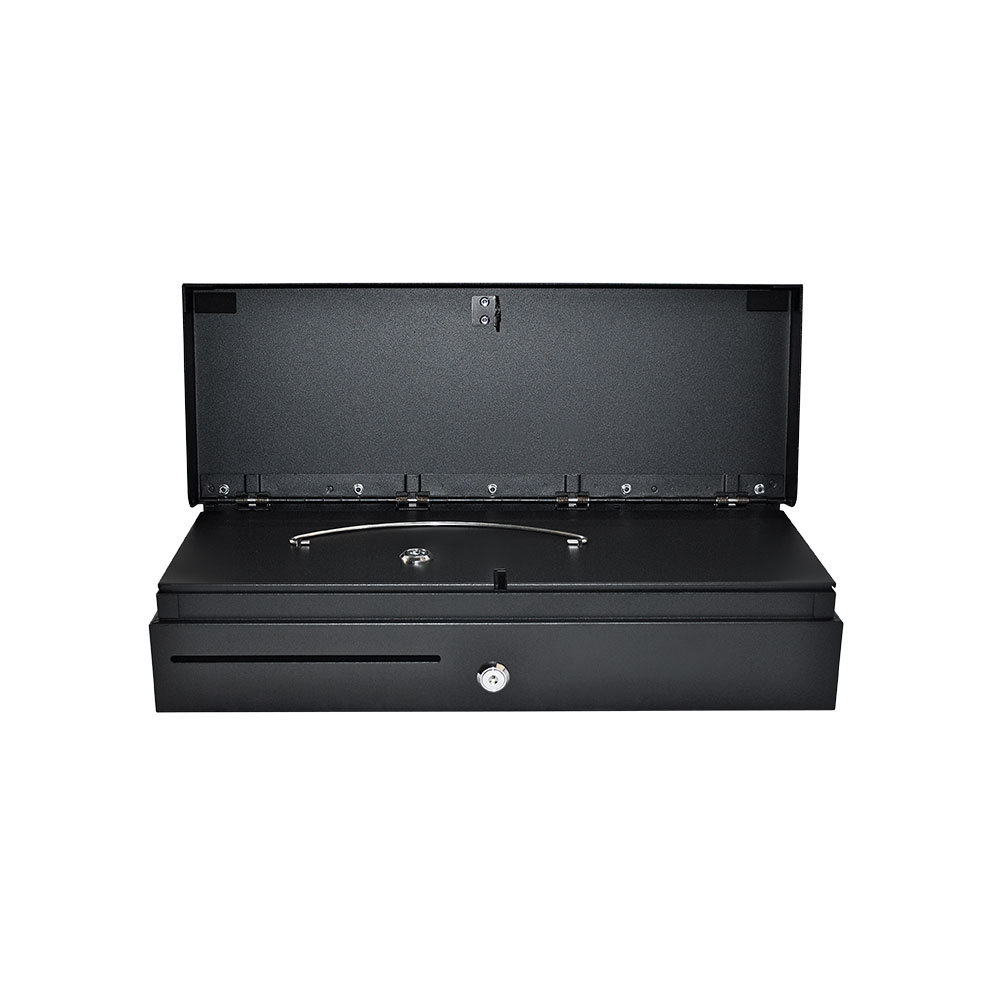

• Lockable lid insert included with 2 keys. Single combinations or 150 different keys combinations
• External keylock: 3 Position. Single combinations or 25 different keys combinations
• Solenoid: 6V, 9V, 12V, 24V, 36V,+ Micro-Switch sensor
• DC Interface: RJ11/12, RJ12 Female, DSUB9
• RJ11/12 PIN scheme: 1# Case Ground, 2# Solenoid, 3# Microswitch, 4# Solenoid, 5# Microswitch, 6# Signal Ground
• Cable Length: 1.80m
• Weight 7.0 Kg
• Tested durability through 2.000.000 Cycles
• Certifications: TÜV Mechanical Safe Test Report, TÜV Drop Test, TÜV Vibration Test, TÜV In accordance with the Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU, CE Certification related to CE Directive(s): 2001/95/EC, CE Certification related to CE Directive(s): 2014/35/EU, “
